Nothing special, just various bits and pieces from my RC hobby adventures. I enjoy building, flying sport, and tinkering with RC Airplanes. Check out my webpage at www.RCDave.net.
Monday, October 31, 2016
Sunday, October 30, 2016
How to select the correct glow plug...
There's loads of info on this topic, and I've consolidated what I thought were the best pieces from James McCarty, Brian Cooper, and Brian Gardner . Rather than repost a pile of stuff I have on my website, I'll point you to it. You can see it on my website at http://www.RCDave.net or you can link directly to the info on one of my servers at http://www.scootworks.com/rdrcdave/gloplugs.html . I hope this helps some of you as much as it has helped me!
Dave AMA119484
http://www.RCDave.net
Dave AMA119484
http://www.RCDave.net
Saturday, October 29, 2016
Checking out the electronics on my Spoiler...

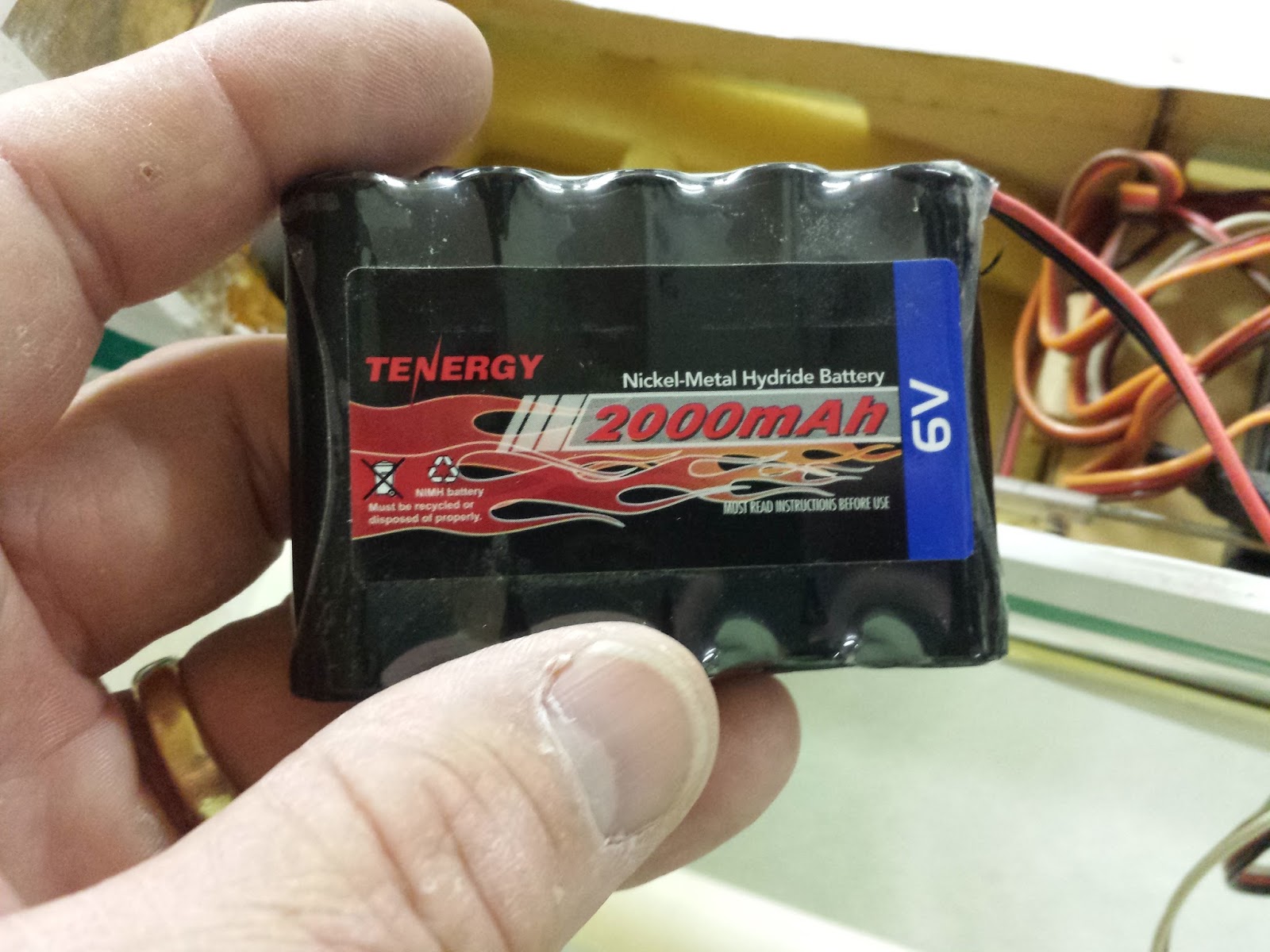

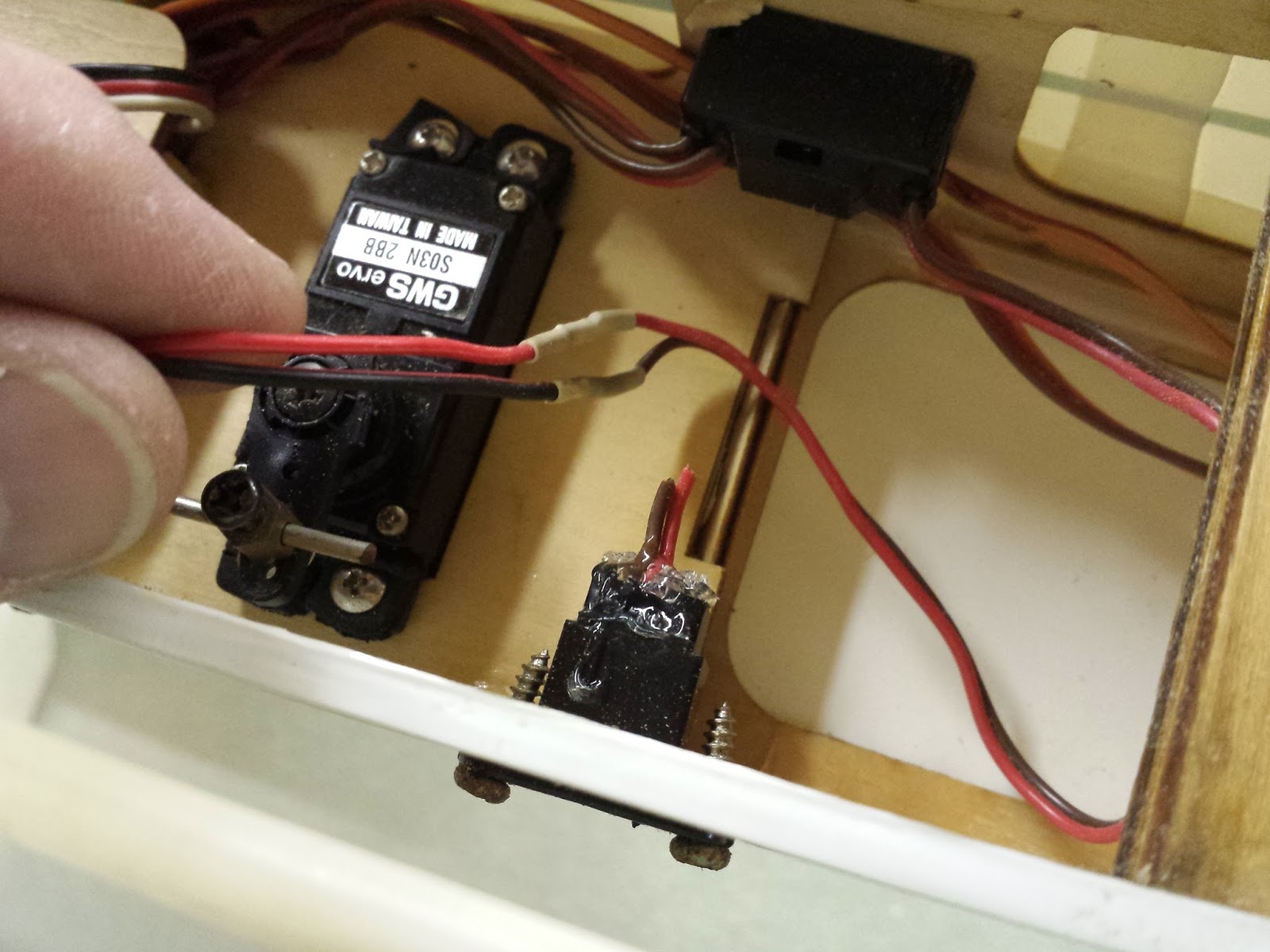

After patching a bit of covering, cycling the batteries, lubricating the engine, and a general good check over... here's running the servos a bit. Looks like she's ready to take to the sky again!
Dave AMA119484
http://www.RCDave.net
Dave AMA119484
http://www.RCDave.net
Repairing "China Film" with Clear Monokote
I've used clear Monokote for years in a variety of repairs. With so many ARFs now being covered in low temp "China Film", despite the mfg's claiming it to be a name brand covering, many pilots find the covering coming loose on glow fuel powered aircraft. The fuel residue from glow fuel will find it's way under the edge of the covering, soften the adhesive, and resealing with a covering iron is only a temporary fix. I've had this happen a number of times and have found a permanent fix for the problem... Clear Monokote covering!
I recently pulled my old ERC Spoiler down from my storage racks and discovered the clear outer layer of covering had let go, leaving only the white pasty color layer behind. The clear outer layer was peeling off, and could not be reattached over the color. I pulled the clear layer back in place and tacked it down to the wing with the sealing iron on low temp (abt 250 deg), cut a thin strip of clear Monokote, and applied is across the edge of the failing China-film joint. I sealed the Monokote at 300 degrees, and the repair is complete and permanent. You have to be careful where your iron touches the China-film, some of that stuff melts very easily and at a very low temp, but overall I've found this to be my best way to repair China-film, short of recovering the aircraft.
Here I've cut a strip of clear Monokote and have peeled the backing away, in preparation for sealing to to the repair area on my wing.
There's nothing special about the clear Monokote, you could use any color of iron on covering, but the clear doesn't smear color onto the original covering, and the original covering can be seen through it... it's almost invisible.
Here, the clear strip has been ironed into place over the failing China-film joint, and is only seen when looking up close.
My spoiler, ready to go, with no visible covering repairs from the china-film problem. I've had the airplane several years, so there are several small repairs with clear Monokote on it!
Dave AMA119484
http://www.RCDave.net
I recently pulled my old ERC Spoiler down from my storage racks and discovered the clear outer layer of covering had let go, leaving only the white pasty color layer behind. The clear outer layer was peeling off, and could not be reattached over the color. I pulled the clear layer back in place and tacked it down to the wing with the sealing iron on low temp (abt 250 deg), cut a thin strip of clear Monokote, and applied is across the edge of the failing China-film joint. I sealed the Monokote at 300 degrees, and the repair is complete and permanent. You have to be careful where your iron touches the China-film, some of that stuff melts very easily and at a very low temp, but overall I've found this to be my best way to repair China-film, short of recovering the aircraft.
Here I've cut a strip of clear Monokote and have peeled the backing away, in preparation for sealing to to the repair area on my wing.
There's nothing special about the clear Monokote, you could use any color of iron on covering, but the clear doesn't smear color onto the original covering, and the original covering can be seen through it... it's almost invisible.
Here, the clear strip has been ironed into place over the failing China-film joint, and is only seen when looking up close.
My spoiler, ready to go, with no visible covering repairs from the china-film problem. I've had the airplane several years, so there are several small repairs with clear Monokote on it!
Dave AMA119484
http://www.RCDave.net
Friday, October 28, 2016
Everything You Ever Wanted to Know About Glow Fuel, and more...
Without reposting a ton of stuff, check this out on my web server at:
http://www.scootworks.com/rdrcdave/fuel.html
I linked to it directly from my website at http://www.RCDave.net . It's well worth the read!
Dave AMA119484
http://www.RCDave.net
http://www.scootworks.com/rdrcdave/fuel.html
I linked to it directly from my website at http://www.RCDave.net . It's well worth the read!
Dave AMA119484
http://www.RCDave.net
Thursday, October 27, 2016
My old DaveCharger still works...
This is an old field charger I designed and built back around 1985. It's a constant current charger design that is essentially two chargers in one enclosure...one for RX and one for TX. The input voltage needs to be a couple of volts ahead of the battery being charged, so I would often run mine on 24 volts at the field to quick charge my transmitters. My later pulse charger design could charge a 9.6vdc TX battery from a 12 vdc field box battery, but since I usually kept a spare field box battery and some clip leads with me, it was no issue to operate on 24 v if needed.
It uses a pair of LM317's wired in a current regulator configuration, with values calculated for about 600mah output. The output LEDs have a parallel resistance to allow full illumination at 600mah output. Once a NiCd or NiMH battery begins to approach saturation, the charge current deteriorates and the LED will fade and turn off around 250mah, indicating nearly full charge and ready for use. The photos below show a few pics and an old "toilet paper" drawing of the circuit. While not nearly as "whiz-bang" as all of the digital chargers of late, it's easily built with a few pieces from Radio Shack and some junk box parts. and will provide years of service.
Here you can see one of the two LM317's . They are installed to the heat sink with insulators and thermal heat sink compound. They can not be electrically connected to the heat sink.
My crude schematic. The 2 ohm 10 watt resistor for each charger circuit is a pair of 1 ohm 10 watt resistors in series. The 5 ohm 4 watt resistor in parallel with each LED is a pair of 10 ohm 2 watt resistors in parallel and attached to the front panel with silicone adhesive. These can be seen in the last photo. There is no difference in the circuitry for the RX or TX charger ports, since it's current regulated.
Dave AMA119484
http://www.RCDave.net
It uses a pair of LM317's wired in a current regulator configuration, with values calculated for about 600mah output. The output LEDs have a parallel resistance to allow full illumination at 600mah output. Once a NiCd or NiMH battery begins to approach saturation, the charge current deteriorates and the LED will fade and turn off around 250mah, indicating nearly full charge and ready for use. The photos below show a few pics and an old "toilet paper" drawing of the circuit. While not nearly as "whiz-bang" as all of the digital chargers of late, it's easily built with a few pieces from Radio Shack and some junk box parts. and will provide years of service.
Here you can see one of the two LM317's . They are installed to the heat sink with insulators and thermal heat sink compound. They can not be electrically connected to the heat sink.
My crude schematic. The 2 ohm 10 watt resistor for each charger circuit is a pair of 1 ohm 10 watt resistors in series. The 5 ohm 4 watt resistor in parallel with each LED is a pair of 10 ohm 2 watt resistors in parallel and attached to the front panel with silicone adhesive. These can be seen in the last photo. There is no difference in the circuitry for the RX or TX charger ports, since it's current regulated.
Dave AMA119484
http://www.RCDave.net
Tuesday, October 25, 2016
Engine Break-In Tips
Engine Break-In Tips
A good guide Breaking in your R/C Engine...
This is a great guide for the correct
break-in basics of R/C engines. Follow these guidelines to hopefully have a long and healthy
R/C Engine Life!
Breaking in your Engine
Original publication by Norman Osborne
Adapted to current views by Pé Reivers
Standard fuel blends are:
Glow fuel: 72% methanol 10% nitro 18% oil (castor or synthetic) Glow fuel for break-in: 80% methanol 20% oil (castor or synthetic)
The object of running in an engine, is to get
the engine to the point where all the rubbing surfaces are perfectly
mated to each other at all temperatures likely to be attained, while
causing as little wear to the engine as possible in the process. The
benefits of doing this properly are twofold; the engine would be a
'better' engine throughout it's life, and that life would also be
extended. A good tip is to use an old glowplug when first running in an
engine, as often minute pieces of metal from the running in process or
swarf left from manufacturing can destroy a glowplug in seconds.
The method used to achieve this is simple. Run
the engine very rich and lightly loaded at first and gradually increase
the amount of work the engine is allowed to do, at the same time
gradually increasing the temperature that the engine is allowed to
attain, by judicious use of the main needle valve. This gradual process
is spread over approximately the first half hour of the engine's life
when it should be ready for its first full speed run. During all running
of new engines, the setting should be on the rich side of peak power.
All running-in during the first tankfuls is done with the throttle fully open.
Ringed Engines
Start by using one of the smaller propellers
recommended by the manufacturer and a minimum of 20% of oil in the
straight or low nitro fuel. When using synthetic oil, addition of castor
for the first run(s) is recommended by most manufacturers and engine
authorities.
Run the first tankful absolutely soggy-rich,
keeping the glow-plug lead attached if necessary to keep the engine
running. Keep all runs of short duration of one-half to one minute, with
a few minutes cooling down time between each. The number of heat cycles
makes the metal "set" and speeds up the final fit of the components.
The rich mixture and the short runs prevent the temperature from rising
too much. Debris that forms will be washed away by the excess fuel and
oil.
For the next few runs set the main fuel needle
to give a very fast four-stroke with just the occasional hint of
two-stroking. Allow engine to run for 30 seconds and then stop for a two
minute cooling period, Start again for 30 seconds then allow to cool
again. Gradually increase the length of the full throttle runs, unless
the engine shows a tendency to bind, which can be heard by the labouring
sound and unwillingness to maintain a steady rpm. At the end of two
tankfuls lean the engine out to the point where the engine is on the
verge of two-stroking and four-stroking and go fly, reducing throttle
from time to time to allow the engine to cool a bit. Keep this up for
about four litres of fuel. By now the engine should be steady running,
without any tendency to sag, and can be leaned further to the point,
that max. power is achieved. Always back off the needle a bit until a
clear drop in rev's can be noticed. That is the standard flight setting
for longevity and strong running in the air. During flight, the engine
will lean out a bit, so you will be on the safe side of disaster with
this setting.
If the engine is to be used under more harsh
conditions (e.g. with a tuned pipe or high nitro fuel), then it will
need some extra running-in under the short-run procedure, using the
same fuel as for it's intended use, but with extra oil added. 25% oil is
not too much for the first runs of a racing engine and will do it a lot
of good.
All this might seem a long-winded process but
it is necessary to get the best surface finish with the least wear
inside your precious engine.
The reason for everything being done in small
and gradual steps is that the rubbing surfaces have to be mated at
gradually increasing pressures and to further complicate this the shape
of the parts change as temperatures are increased. As an illustration,
the cylinder and piston are round and parallel sided when made. As the
engine warms up the top half of the cylinder gets hotter than the bottom
half and so expands unevenly, worse than this the exhaust side of the
liner runs hotter than the transfer side, then to add to the problem the
front of the engine (in the airstream) runs cooler than the rear of the
engine, so you can see the liner would be anything but perfectly round
and parallel when thoroughly hot. That is the reason, that a well run-in
engine has a bit less compression during starting than a new engine.
The piston and ring are subject to similar
stresses. The ring alters its length depending on temperature and is
also going up and down a bore which is no longer round or parallel sided
and is guided through this operation by a piston which gets hotter at
its head where it is in contact with the burning fuel mixture and
therefore the diameter of the head is bigger than the walls. The exhaust
side of the piston is hotter than the transfer side so the piston is no
longer round or, as mentioned earlier, parallel sided either. All these
distortions are larger or smaller depending on the temperature of the
engine, so the running-in process has to allow the engine to make the
mating working surfaces suitable for all these varying conditions.
During the run-in check all screws and bolts
for security and if you have to tighten any cylinder head bolts,
remember to tighten a little at a time and in diagonal rotation. You
might also find the glow-plug has been affected by small metal particles
fired at it during running-in. If you have any doubts change it and
keep the old one only for running-in only, or throw it away. It did
serve it's duty.
Running in ABC engines
An 'ABC' engine is one with special liner and
piston metallurgy, e.g., the piston is aluminium (A), the liner is brass
(B), and the brass is chrome plated (C). Generally these are
performance orientated engines.
When an ABC engine is warmed up, the top of
the liner, which made of brass, will expand more than the piston which
is made of aluminium. Consequently, as the engine reaches working
temperature the piston seal would not be very satisfactory. The
manufacturers have taken steps to counteract this undesirable state of
affairs by making the liner and piston the correct sizes for when the
engine is hot. This means that when cold the piston is a very tight fit
at the top of the liner, to the point where some make a light groaning
noise when forced over Top Dead Centre (when the piston is at the very
top of its travel, or TDC for short). Warning: a new ABC engine
should never be turned over slowly, especially when still lubricated by
the original preserving oil that the engine is shipped with. That will
cause slight, but immediate damage to the top part of the piston fit,
because the surfaces are still rough.
Little running-in is required with these
engines, as the cylinder temperature must be raised to full working
temperature as quickly as possible to avoid excessive piston wear due to
the very tight fit at lower temperatures. As a matter of fact, it is
best to fly these engines out of the box, using a rich setting with
occasional four stroking. It is important to use an extra 5% of oil on
top of the normal mixture.
When bench running, my usual method is to use
about 5% extra castor oil in the fuel and set the engine for just below
full speed running (throttle fully open, main needle just a little bit
rich), and run the engine in short cycles of approximately 30 sec's.
full speed and 5 sec's. at 1/3 speed, for the first 15 minutes. This
keeps the cylinder temperature up and the slow running should give time
for any hot spots to cool down somewhat. For the next 45 minutes use the
engine normally but keep it just a touch rich (just 2 or 3 clicks).
After that, normal fuel can be used as per manufacturers
recommendations.
Setting the main needle
This is a most important setting as not only
does it set maximum power but it also controls the running temperature
of the engine and from there the length of the engine's life, the life
of the glow-plug and the overall reliability of the engine's running in
flight or elsewhere. Engines don't very often cut out in flight because
they are set slightly too rich, but they most certainly do when set too
lean.
It takes about five minutes to learn the drill
for correct needle valve setting so it's worth taking the trouble for
the long term benefits gained.
The drill is to start the engine on low
throttle, for safety and usually easier starting due to higher gas
speeds through the venturi and consequent better atomization of the fuel
droplets. Once started, open the throttle fully and set engine to just
four-stroking rich. Leave the engine to warm through thoroughly at top
speed for a few moments, then adjust the needle until the engine is just
off four stroking and running smooth. At this point, further leaning of
the mixture results in RPM increase. From this established point richen
up slowly again until a small but definite drop in RPM is noticed, with
the engine still two-stroking. Lift the nose of the model up vertically
and if the small loss of RPM is regained then you should have a good
flight setting. If the model has a tendency to go rich or go lean in
flight then an extra allowance will have to be made for this on the
final setting.
The aim of this is to give maximum power from
the engine when it is needed most, either when the model is climbing or
when turning sharply and will also give sweet and cool running during
level flight, the best of both worlds.
What happens when an engine is set too lean
The glow-plug engine keeps running because the
heat of compression and the catalytic action of the glowing plug
material with the methanol mixture ignite the charge in the cylinder at
the correct moment. This catalytic action also keeps the plug lit.
Sometimes an engine will start without adding glow to the plug after it
has been stopped for several minutes. A little thought will let you see
that the whole system is very temperature dependent. No spark to set it
off, no injection of fuel to set it off. Just the combination of these
two properties.
When an engine is set lean i.e., for maximum
RPM at the start of a tankful of fuel, anything which slows the passage
of the fuel through the needle valve will make the engine run over lean.
Some engines will not continue to run in this condition and so cut dead
but the majority will continue to run to some degree.
As the tankful of fuel gets used the fuel
pressure, as seen by the needle valve, gradually reduces and as a result
the engine gets a progressively leaner mixture as the flight continues.
As the engine started set in a lean condition it must progress into the
over lean condition and maybe go so far as to cut out, suffer from
overheating and get damaged.
When the engine runs flat out, ignition timing
and engine temperature should be as the designer intended but as the
mixture gets into the over lean area temperatures will start to rise.
This is due to lack of extra internal evaporation of excess fuel, and
hotter burning of lean mixtures. Over-lean mixtures can change
combustion characteristics in a way that imparts more heat to the
surrounding engine structure leaving less for useful work. The fit of
the moving parts becomes worse, and friction rises.
As a result of this the incoming charge is
heated a little more than it should be and when compressed is at a
higher temperature than it otherwise would be. The secondary effect of
the engine structure being at a little higher temperature is that the
glow-plug element is also a little hotter, which advances the onset of
ignition.
As already explained, ignition timing is
controlled by the temperature of the compressed fuel/air mixture
combined with the temperature of the glow-plug element. The net result
of both of these being raised is early ignition in the next cycle.. This
early ignition gives just a little more time for even more heat to be
transferred to the engine structure before the hot gasses are exhausted
from the engine and so jacking up engine temperatures just a little
more, resulting in the next cycle jacking up temperatures yet again.
This is the slow build situation that causes
engine seizure in some cases and in other cases runaway early ignition
that makes an engine stop quickly in the air and even throw the prop, as
though it has seized, but in fact feels perfectly O.K. and runs O.K.
when it has cooled down again.
Many of the modern engines do not reach these
extremes but keep running at a steadier but much higher temperature than
they were ever designed for. These engines run other risks which are
much less obvious.
One risk common to ail engines which are run
at elevated temperatures is that the oil gets very hot, thins out too
far and so can no longer lubricate as effectively as it should,
resulting in excess wear and shortened engine life. Synthetic oil will
evaporate at very high temperatures without leaving a trace of
lubrication.
The less obvious damage that can occur is not
usually laid at the door of a lean fuel setting but I believe much of
the time it is a relevant factor. When the engine has overheated and
reached the point of too early ignition the burning mixture expands the
gasses well before top dead center and so the pressures inside the
cylinder are much higher than they should be. These extra high pressures
at the wrong time in the combustion stroke try to force the piston down
with greater power than the designer intended and therefore overload
the wrist pin in the piston and the little end bearing, the con-rod is
more highly stressed, the big end bearings and the main bearings on the
crankshaft are also subjected to higher loads. In four stroke engines
it is not uncommon that the engine will knock and even kick back and
throw the prop. Knocking can be heard, and is a typical sound like tin
foil being rubbed.
These extra stresses may only result in wear
being more rapid than necessary but if it is a regular occurrence it can
result in very early bearing failure, and if it happens to be the
con-rod that gives up first the resultant damage can be very expensive.
With all this in mind, when adjusting the main needle of your engine the catch phrase should be 'The future of your engine is in your hands'.
Setting the low speed
The need for a low speed adjustment on the
carburetor is because as the throttle is closed it lets less air
through into the engine and to keep the fuel air mixture within
combustible limits the fuel flow. has to be altered, it's too fussy to
leave to chance.
Most manufacturers have opted for a two needle configuration or something which works in a similar manner.
To adjust this low speed mixture start the
engine, warm it up and make sure the main needle is properly set.
Connect the glow-plug lead to energize the plug and slow engine down by
gradually closing the throttle until the engine starts to run badly. At
this point adjust the slow run needle to give smoothest running
characteristics just a little on the rich side of fastest setting.
Having made this adjustment slow the engine further until it runs badly
again, now adjust slow needle until engine runs smoothly once more and
continue this step by step procedure until the desired tickover has been
reached, with the throttle barrel barely 1mm open. Now remove the plug
lead and repeat the whole process. If the engine cuts dead in the middle
of adjustments it's usually because it is too lean.
Having reached a slow tick over we have to
check if the engine will pick up properly. Open the throttle to full
speed with a smooth sweep, without jamming the controls. I know of many
people who demand their engine to respond well to slamming the throttle
open, but in two-stroke engines, this is asking for trouble and not to
be recommended. If the engine picks up but splutters a little whilst
doing so, the low speed needle is a little on the rich side. If the
engine appears to miss and then picks up suddenly the low speed needle
is slightly lean, and if the engine cuts dead when the throttle is
opened richen the low speed needle 1/4 turn and try again, adjusting in
small increments.
If the engine starts to pick up pretty well
and then cuts at about 1/3 speed or so, try opening the main needle two
or three clicks.
On many engines there has to be a compromise
or two to get the low speed, midrange, top speed and pickup to a
useable whole, and usually the compromise is that somewhere in the range
the carburettor has to be set a little richer than would be considered
ideal. Rich mixtures are an assurance for longevity and seldom cause the
engine to stop, unless extreme.
Four-Stroke engines
The previous sections are written specifically
for two-strokes, but exactly the same principles apply to a
four-stroke, just some of the symptoms are slightly different.
When running-in from new use a fuel with 20%
oil of which at least half is castor oil for the first runs. A
four-stroke cannot be made to four-stroke when rich, it's already doing
it, but what does happen is the engine misfires in a rather uneven
manner, the richer the setting the more pronounced the misfire. The main
needle, after running in, is set in exactly the same manner i.e., just
on the slightly rich side of maximum RPM., when the engine is thoroughly
hot. The use of a rev. meter is invaluable here, because adjustment by
ear is more difficult than in two-strokes.
If the main needle is set too lean the engine
may slow down with the. exhaust exhibiting a more leaden note than usual
and may progress to the point where the engine stops with a bang due to
'detonation' and throws the propeller off in flight, or on the ground
and perhaps at whoever is standing in the way.
'Detonation' is like early ignition but the
difference is that instead of the mixture burning progressively from the
glow-plug outwards, the temperature and pressure in the cylinder are
such that the whole fuel charge ignites at the same time, before TDC,
stops the piston dead, and blows it back the other way.
'Knocking' or 'Pinking' are like a slightly
milder form of detonation that happens late enough in the compression
stroke for the flywheel effect of the propeller to get the piston over
TDC and therefore for the engine to keep running. Always close the
throttle and open the main needle a bit more when this happens as it
over stresses, and may damage the engine.
The main defense against these phenomena is to
run the engine a little richer, and mix in some acetone (1% - 3%) in
the fuel to stabilize combustion. Adding some 2% of water to the fuel
may also suppress Knocking. (in hot, humid weather). This works in two
distinct ways, first the richer mixture will keep the engine a little
cooler, thus making the conditions for commencement of 'knocking' harder
to attain and secondly and very importantly, a rich mixture is much
less prone to detonation than a lean mixture. These two effects work
together, either for you or against you depending whether you set the
main needle rich or lean. Again, the engine's fate is in your hands.
The low speed needle is adjusted in the same
manner as a two-stroke except generally speaking it needs to be
noticeably richer than a two-stroke, to ensure a good pick-up when the
throttle is opened and also on some engines to stop 'knocking', and the
consequent risk of throwing the propeller, whilst the engine is picking
up speed. In general, speed pick-up from idle is far more better in
four-strokes than that in two-strokes
A Few General Do's and Don'ts
Good Engine Break-in Procedure
Adapted from Ed Moorman
Pre-lube the engine with some after run oil.
Make sure the oil content in the fuel is 18% or more. 20% is better for
break in. Castor oil or a castor oil/synthetic blend offers the most
protection as synthetic oil burns off during a too lean run and offers
no protection. I won't use a 100% synthetic oil fuel as all engines will
always lean out in flight, and I want the added protection of castor
oil.
Start the engine, let it run rich and at
slow speed, not necessarily an idle, until the cylinder fins are warm,
then go to full throttle, quickly lean it out to slightly richer than
MAX RPM. After 5 seconds, pull the fuel line off or pinch it to kill the
engine quickly, so that it doesn't linger at a too lean mixture. Let
the engine sit until it is relatively cool to the touch. (The heat/cool
cycle)
Now, do it again, but let it scream at full throttle for 10 seconds, kill it the same way and let cool. Another heat/cool cycle.
Increase the hot run by 5 seconds each run until you have a 30 second hot run.
Then do (5) 30 second hot runs. Now it's
essentially broken in, so NOW adjust the idle mixture and you're ready
to fly. I usually run a tank through at this point at various throttle
settings, while I'm adjusting the idle mixture.
NEVER go to full throttle after any engine start until the head is warm to the touch.
O.S. Engine Break-in Procedure
Taken from O.S. .46 FX manual
All internal-combustion engines benefit from
extra care when they are run for the first few times known as running-in
or breaking-in.
This allows the working parts to mate together under load at operating temperature. Therefore, it is vitally important to complete the break-in before allowing the engine to run continuously at high speed and before finalizing carburetor adjustments. However, because O.S. engines are produced with the aid of the finest modern precision machinery and from the best and most suitable materials, only a short and simple running-in procedure is called for and can be carried out with the engine installed in the model. The process is as follows.
1. Install the engine with the propeller
intended for your model. Open the needle-valve to the advised starting
setting and start the engine. If the engine stops when the glow plug
battery disconnected, open the needle-valve to the point where the
engine does not stop. Run the engine for one minute with the throttle
fully open, but with the needle-valve adjusted for rich, slow
"four-cycle" operation.
2. Now close the needle-valve until the
engine speeds up to "two-cycle" operation and allow it to run for about
10 seconds, then reopen the needle-valve to bring the engine back to
"four-cycle" operation and run it for another 10 seconds. Repeat this
procedure until the fuel tank is empty.
3. Re-start and adjust the needle-valve so
that the engine just breaks into "two-cycle" from "four-cycle"
operation, then make three or four flights, avoiding successive
"nose-up" flights.
4. During subsequent flights, the
needle-valve can be gradually closed to give more power. However, if the
engine shows signs of running too lean, the next flight should be set
rich. After a total of ten to fifteen flights, the engine should run
continuously, on its optimum needle-valve setting, without loss of power
as it warms up.
5. After the completion of the running-in adjust the carburetor at optimum setting.
Optimum needle setting(1)
Slowly advance the throttle to its fully open
position, then gradually close the needle-valve until the exhaust note
begins to change. (4-cycle to 2-cycle) At this point, disconnect the
battery from the glow plug, taking care that the battery leads or
glow plug clip do not come into contact with the rotating propeller. If
the engine stops when the battery is disconnected, close the
needle-valve about 30° and restart.
Optimum needle setting(2)
As the needle-valve is closed slowly and
gradually, the engine rpm will increase and a continuous high pitched
exhaust note, only, will be heard. Close the needle-valve 10-15° and
wait for the change of rpm After the engine rpm increases turn the
needle-valve another 10-15° and wait for the next change of rpm. As the
speed of the engine does not instantly change with needle-valve
readjustment, small movements, with pauses between, are necessary to
arrive at the optimum setting.
|
Monday, October 24, 2016
Checking throws on my Twist...
I got my old Hangar 9 Twist out of the mothballs and get her repaired. After a few bits, I got a chance to power it up and give a quick checkout. Here's a short video of the servo throws on this bird. You can see more of it in the blog post previous to this one...
Dave AMA119484
http://www.RCDave.net
http://www.RD-RC.net (Archives)
http://www.RD-RC.org (RDRC Primary)
http://www.eastrc.org/rdrc_live/ (RDRC Cams & WX)
Dave AMA119484
http://www.RCDave.net
http://www.RD-RC.net (Archives)
http://www.RD-RC.org (RDRC Primary)
http://www.eastrc.org/rdrc_live/ (RDRC Cams & WX)
My Twist Returns to the Air!
I finally had time to get my old Hangar 9 Twist repaired and ready to go. This time, I had to patch some covering (especially on the wingtips, from dragging them on the runway), replace the throttle servo, replace a defective charge jack on the side of the airplane, and replace the flight battery. I've totally worn the treads off of the tires, and they flop around on the axles like something stupid, but they still roll! Hey, you don't need wheels on an airplane but just a few seconds each flight, right?
This airplane has been thru hell and back over the last 10 years. It has been broken in half twice by donking it into the ground while flying inverted limbo and other fun stuff (once at the 95th flyin), tail totally smashed from going dead stick while trying to hover low (unsuccessfully), canopy smashed from multiple inverted crashes, landing gear blocks ripped out from full throttle touch-n-goes, a zillion holes in covering, cartwheeled (ripping out wing saddle) while flying loowwww circles over the deep grass with Manny, etc... yet she still flys. It is a little heavier from all the repairs, but loads of fun!
It has a little removable hatch for battery & receiver access. Much easier than some of my older airplanes.
The old 700mzh 4-cell NiMH pack was only cycling at about 400mah, so it was time to go. The battery wasn't very old, but it sat unused with a partial charge almost 3 years...doing as much harm as daily usage.
I replaced it with a 5-cell NiMH 2000mah pack. More voltage and a lot more current. Should make for much longer flight times, and only a little heavier. These systems can handle a 5-cell pack just fine, no regulators needed. The servos are a little faster on a 5 cell, too.
The charge jack had failed, and I made a quick field repair back about 3 years ago. I soldered on a little pigtail connector, and just let it flop around outside of the airplane while in flight. I replaced that with a new charge jack to clean that mess up, too...
Solid! Plenty of voltage to fly with, now!
These old tires are the originals that came with the kit 10 years ago. The treads are worn off, but they're still fine. These don't have bearings in the center, so the bores are worn pretty badly, as well. Doesn't seem to impact the ability to take off and land, so I'm still rolling with these :-)
Wing back on, checking everything out. Looks like it's good to go!
The camera hides a LOT, believe me...in person it doesn't look nearly as well. I thought about recovering it, but then I wouldn't want to bang it around as much... So patched up it stays!
Dave AMA119484
Saturday, October 22, 2016
RC Electric Motor Info...
I was recently looking over some motors I had to try and determine the proper application, and remembered a chart that one of my sons put together many years ago, when we were selling a lot of motors online. While you might not find the exact motor in the list you are using, you'll find that the numbering system for most motors is fairly universal (motor shell diameter - length / # of turns in the motor winding). The chart shows approximate prop size range recommended as a starting point, and performance when compared to a conventional engine.
For the chart I archived with this data, go to this link: http://www.eastrc.org/electric-motor-ref.htm on my website. I hope this helps some of you!
Dave AMA119484
http://www.RCDave.net
For the chart I archived with this data, go to this link: http://www.eastrc.org/electric-motor-ref.htm on my website. I hope this helps some of you!
Dave AMA119484
http://www.RCDave.net
Friday, October 21, 2016
Preflight checkout, Lucky13
I'm wrapping up this cleanup-checkout of my Lucky13 that has been parked about 2-1/2 years. Other than needing a RX battery, the bird seems fine and ready to go. Here's a quick clip of all of the servos in operation. Time to hand it up and move on to the next one. Getting the itch to burn holes in the sky!
Thursday, October 20, 2016
Another one pulled from the dust!
Here's another bird that's been unused and hanging in the ceiling for at least 2 years. It's called "Lucky 13" and was sold by East RC for several years (http://www.EastRC.org). It has a 64" wingspan, a flat bottom airfoil, and weighs about 5-1/2 lbs. I set this on up with a Hang-It RC XTRM 3520/06 motor, 12 x 6 e-prop, and fly it on a 4 cell 4000mah LiPO. It flies very scale-like on 4 cells. I've seen others with a similar setup and 5 cells, and it would fly straight up, out of sight.
I put a new 5 cell 3000mah NiMH receiver battery in it before it was stored (it needed the nose weight in my setup, anyway), and now it only cycles at about 1100 mah...so I guess it's time for a new flight battery. Oh well, it's still good for a flight or so, as long as i watch the charge closely. A new flight battery is on the "to get" list for this beast. Here's a few pics...
This is a 800rpm/volt motor, and swings a 12x6 like a .50ish sized glow motor.
I added some color to the wing to help with visibility, using some scrap monokote I had laying around, and used the iron on about 225 degrees.
It breaks down for transport pretty easily, and the wing also comes in half from it's internal round aluminum wing tube.
A pic showing the tip of the wing & airfoil profile.
Time to get back to work...maybe I'll have a day off soon to actually get out and fly this airplane! :-)
Dave AMA119484
http://www.RCDave.net
I put a new 5 cell 3000mah NiMH receiver battery in it before it was stored (it needed the nose weight in my setup, anyway), and now it only cycles at about 1100 mah...so I guess it's time for a new flight battery. Oh well, it's still good for a flight or so, as long as i watch the charge closely. A new flight battery is on the "to get" list for this beast. Here's a few pics...
This is a 800rpm/volt motor, and swings a 12x6 like a .50ish sized glow motor.
I added some color to the wing to help with visibility, using some scrap monokote I had laying around, and used the iron on about 225 degrees.
It breaks down for transport pretty easily, and the wing also comes in half from it's internal round aluminum wing tube.
A pic showing the tip of the wing & airfoil profile.
Time to get back to work...maybe I'll have a day off soon to actually get out and fly this airplane! :-)
Dave AMA119484
http://www.RCDave.net
Wednesday, October 19, 2016
RC Transmitter Case from the 1980's...
This is a short blog about an early RC Transmitter Case I got from Gator RC back in the mid-1980's. There wasn't much to choose from back then, and many guys were having cloth pouches stitched up with padding to protect their radio transmitters. I bought a hard case from Gator RC and it's still in use today. Much to my surprise, I just discovered they're still in business and even on the web at http://www.gator-rc.com/ . Here's a few pics of my relic with an oldie-but-goldie Futaba 7UAF TX inside...
Dave AMA119484
http://www.RCDave.net
Dave AMA119484
http://www.RCDave.net
Tuesday, October 18, 2016
RX & TX Battery Maintenance on the Cheap!
Here's a tip on something I've been doing for 30+ years with great results. Most of us are guilty of charging our airplanes & transmitters for a day of flying, but never making out to the flying site. Our airplanes will sit around a few weeks until one day we have an unscheduled opportunity to go fly, only to find out that our gear isn't ready and waiting...This is especially common on systems where the batteries may be a little older and the batteries don't hold a charge quite like they used to, due to the internal leakage that comes with age of Nicd and NiMH batteries.
There are a number of trickle chargers and such out there to combat this problem, but I found a simple cure that keeps my gear topped off and ready to go very inexpensively. I use the standard chargers that came with my radio systems, in conjunction with a cheapie Christmas tree lighting timer. These timers are often found at Walmart for $3 or so, and can easily handle the very low current requirement of multiple chargers. Connect the chargers to the timer, set the timer to come on for maybe 30 minutes once or twice daily, and forget about it. It's that simple, and I've never had an issue as a result of doing this. Here I have several transmitters and chargers in maintenance mode...
Here's a closer look at the chargers in my workshop, ganged up on a timer.
All of the airplanes in my ceiling mounted aircraft hangars are wired fr maintenance when hanging in storage. Notice the charger in the upper LH edge of this pic...
Another timer in the garage feeding some of the aircraft in another ceiling hangar. If I want to put a solid overnight charge on, all I have to do is flip the switch on the timer to the "manual on" mode.
A Hangar 9 Twist and a Spoiler ARF hanging in storage while in maintenance mode.
Another timer for a different batch of aircraft. It doesn't matter what the time on the timer is set to, nor what time I have it come on for 30 minutes... Very simple!
Dave AMA119484
http://www.RCDave.net
There are a number of trickle chargers and such out there to combat this problem, but I found a simple cure that keeps my gear topped off and ready to go very inexpensively. I use the standard chargers that came with my radio systems, in conjunction with a cheapie Christmas tree lighting timer. These timers are often found at Walmart for $3 or so, and can easily handle the very low current requirement of multiple chargers. Connect the chargers to the timer, set the timer to come on for maybe 30 minutes once or twice daily, and forget about it. It's that simple, and I've never had an issue as a result of doing this. Here I have several transmitters and chargers in maintenance mode...
Here's a closer look at the chargers in my workshop, ganged up on a timer.
All of the airplanes in my ceiling mounted aircraft hangars are wired fr maintenance when hanging in storage. Notice the charger in the upper LH edge of this pic...
Another timer in the garage feeding some of the aircraft in another ceiling hangar. If I want to put a solid overnight charge on, all I have to do is flip the switch on the timer to the "manual on" mode.
A Hangar 9 Twist and a Spoiler ARF hanging in storage while in maintenance mode.
Another timer for a different batch of aircraft. It doesn't matter what the time on the timer is set to, nor what time I have it come on for 30 minutes... Very simple!
Dave AMA119484
http://www.RCDave.net
Wednesday, October 12, 2016
The Butteryfly is back together...
While trying to resurrect my fleet of old birds, I pulled down my old Butterfly. It was an ARF from Green Models, and I've had it about 7 years and have logged a lot of time on it during that time. It flys on a 2 cell 800mah lipo, and will get 30 minute flights on that setup, easily. The motor is a Hobby-Lobby AM400XTm and seems to be a perfect match for it. On days that are extremely calm with some lift, I'll fly it with a 400mah lipo to make it even lighter. With the 800mah pack, it weighs about 15oz.. With a 47" span and 300" of wind area, it's a real floater.
About 30 minutes into the flight at sunset last night, the rudder servo failed and it got into a light spin. I killed the power and it floated down and into the tall grass at the flying field with no damage. I replaced the servo when I got back home, and she's ready to go again. You can find these on the Maxford website at http://www.Maxfordusa.com .
Dave
http://www.RCDave.net
About 30 minutes into the flight at sunset last night, the rudder servo failed and it got into a light spin. I killed the power and it floated down and into the tall grass at the flying field with no damage. I replaced the servo when I got back home, and she's ready to go again. You can find these on the Maxford website at http://www.Maxfordusa.com .
Dave
http://www.RCDave.net
Monday, October 10, 2016
The Kadet is all finished!
It only took a few days in my spare time, but it's all finished and ready to fly. I can hardly wait to get this one back in the sky, it's always been a lot of fun and has become my favorite airplane to putz around with. Here's a couple of pics of the completed bird, and you can see some of the work that was done it it in the previous posts...
Dave
http://www.RCDave.net
Dave
http://www.RCDave.net
Setting up mixing on the Kadet...
Folks often discount the Kadet as being a lazy trainer and Sunday flyer... I built this one from 3 wrecks that folks were tossing. It was rebuilt with a solid hardwood spar in a one-piece wing, a Saito 100 for power, converted to a tail dragger, and a much larger tank and battery was used. With it's barn-door ailerons and some mixing, this thing is a blast to fly. I mix flaperons, essentially raising the aileron neutral point as the elevators are pushed down, and visa versa. Huge 3D-style throws with lots of expo keep it a docile flyer with loads of potential as the sticks are tossed around.
This thing will hover with the 100 Saito, will roll into a knife-edge on takeoff and climb out in that attitude, will fly backwards with piles of flap action and low throttle. etc. Over the years of flying this airplane, it has become my favorite airplane to fly.
Here's a short video of the flaperon mixing in action, as well a conventional flap setup I have mixed in...
This thing will hover with the 100 Saito, will roll into a knife-edge on takeoff and climb out in that attitude, will fly backwards with piles of flap action and low throttle. etc. Over the years of flying this airplane, it has become my favorite airplane to fly.
Here's a short video of the flaperon mixing in action, as well a conventional flap setup I have mixed in...
Sunday, October 9, 2016
Finishing the repairs to the Kadet fuselage...
While riding out the remainder of hurricane Matthew, I got some time to tinker on this project a bit more. We were running on a whole house generator (power was out), and it had no problem running the home and my home workshop. Great time to play in the storm!
So, I set about to cover the top of the stab and elevator, and fix a few other items... I trimmed the Monokote a little larger than needed, tacked it in place at 300 degrees F around the root of the stab, pull it out to the edge of the stab and tacked it down there, pulled it around the leading edge and tacked it, then folded the elevator all the way down and tacked it into the hinge line. Once tacked in place, I sealed it all the way around the perimeter, and trimmed the excess away. Using a small T-Pin, I punched a tiny hole in the bottom side of each bay of the stab structure to allow air out... I then set the sealing iron to 350 degress F, and shrank the covering across the entire structure on the top side. I use the heat gun in a circular pattern to get any wrinkles out of the corners, and the iron again to seal the covering to all parts of the structure for strength. You can find the temp chart I put together on my website at http://www.RCDave.net for various covering brands.
Once the LH side was done, I moved over and covered the RH side of the stab in the same way.
I cut more material and covered the elevator structure new, using the same methods used for the stab. Once completed, I use the sealing iron and touch the pin holes in the bottom to close those back up.
All finished with the elevator and stab, here's a look from the bottom...
I retained the factory covering on the vertical stab and rudder, but it needed a bit of attention. Sig uses a low temp "china film" of some sort, and it had come loose where the white wraps around the leading edge. I had a bunch of scrap white on the table, so I used little pieces of that to tack to the OEM covering, pull it around the leading edge, and seal it back down.
The transparent film had come loose where it wrapped around the trailing edge of the rudder. I have clear monokote for this sort of application... I cut a strip, tacked it to the OEM covering, wrapped it around the rear of the rudder, and sealed it down. Good as new! (probably better, hahahaha)
OK, the covering on the fuselage is all repaired, problems in the structure are fixed and reinforced, batteries cycled, fuel lines replaced, prop repaired, and other misc stuff finished. Time to get the wing down and check it over for any needed repairs...
Dave
http://www.RCDave.net
So, I set about to cover the top of the stab and elevator, and fix a few other items... I trimmed the Monokote a little larger than needed, tacked it in place at 300 degrees F around the root of the stab, pull it out to the edge of the stab and tacked it down there, pulled it around the leading edge and tacked it, then folded the elevator all the way down and tacked it into the hinge line. Once tacked in place, I sealed it all the way around the perimeter, and trimmed the excess away. Using a small T-Pin, I punched a tiny hole in the bottom side of each bay of the stab structure to allow air out... I then set the sealing iron to 350 degress F, and shrank the covering across the entire structure on the top side. I use the heat gun in a circular pattern to get any wrinkles out of the corners, and the iron again to seal the covering to all parts of the structure for strength. You can find the temp chart I put together on my website at http://www.RCDave.net for various covering brands.
Once the LH side was done, I moved over and covered the RH side of the stab in the same way.
I cut more material and covered the elevator structure new, using the same methods used for the stab. Once completed, I use the sealing iron and touch the pin holes in the bottom to close those back up.
All finished with the elevator and stab, here's a look from the bottom...
I retained the factory covering on the vertical stab and rudder, but it needed a bit of attention. Sig uses a low temp "china film" of some sort, and it had come loose where the white wraps around the leading edge. I had a bunch of scrap white on the table, so I used little pieces of that to tack to the OEM covering, pull it around the leading edge, and seal it back down.
The transparent film had come loose where it wrapped around the trailing edge of the rudder. I have clear monokote for this sort of application... I cut a strip, tacked it to the OEM covering, wrapped it around the rear of the rudder, and sealed it down. Good as new! (probably better, hahahaha)
OK, the covering on the fuselage is all repaired, problems in the structure are fixed and reinforced, batteries cycled, fuel lines replaced, prop repaired, and other misc stuff finished. Time to get the wing down and check it over for any needed repairs...
Dave
http://www.RCDave.net
Subscribe to:
Posts (Atom)
